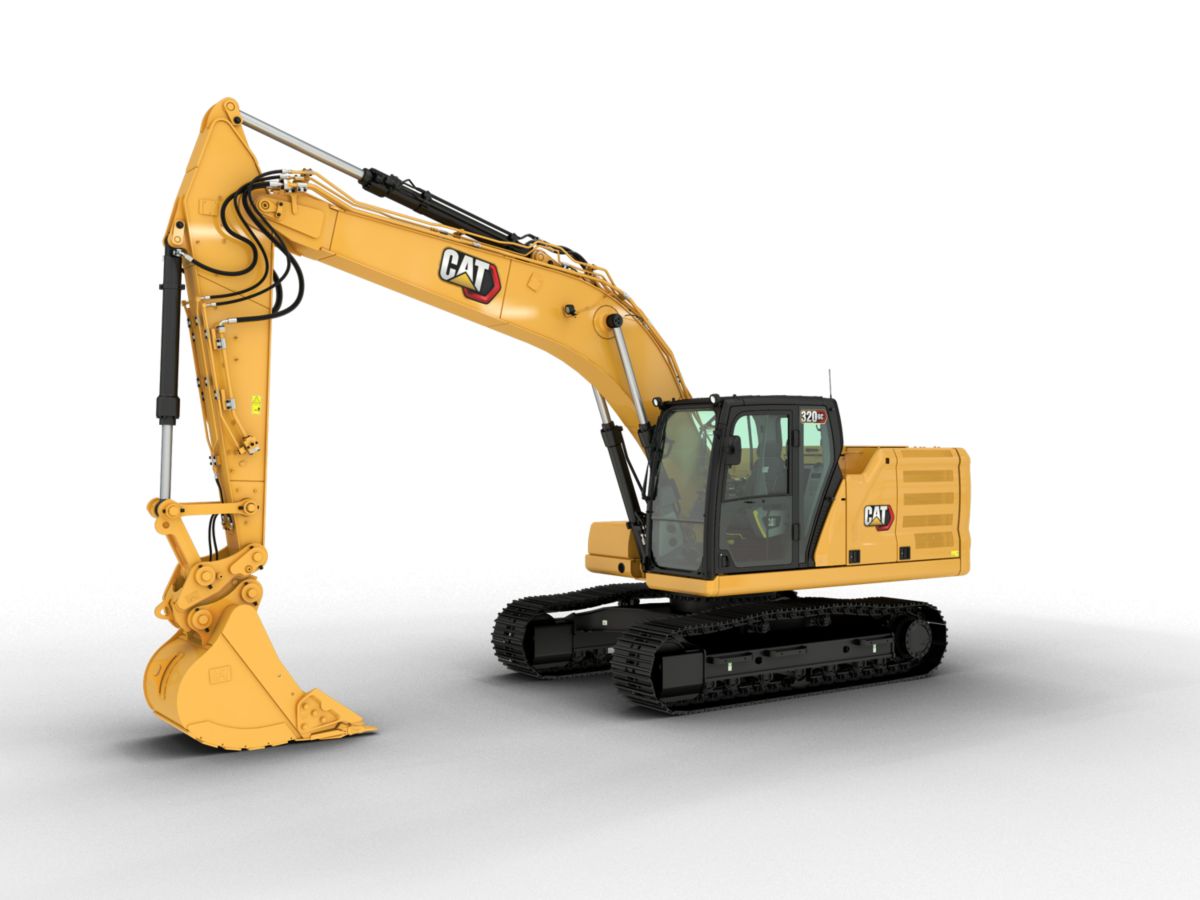

320 GC

Name: Caterpillar 320 GC
Brand: Caterpillar
SKU: 320 GC

Crawler Excavators, Excavator medium and large 20-34 t

The 320 GC is the best choice when it comes to obtaining excellent performance combined with low consumption and hourly costs. Not having the technologies available, productivity has remained at the levels of the previous series, while reducing consumption and costs.

Contact us Rent - Get a quote Check in used equipment Information here above refers to the latest serie available. Rental fleet machines may belong to previous series of the same model.

Technical information

Variable data depending on the machine configuration

Weight (kg)

22600

Power (kW)

110

Digging depth (mm)

6580

Bucket capacity (m3)

1300

Radius at ground level (mm)

9740

Transport width (mm)

2495

Engine

Cat C4.4 Stage V

Features

Universal Quick Coupler CAT

The Cat® Universal Quick Coupler activates, engages and disengages easily: tool changes can be measured in seconds, not minutes. You can get back to work faster, reducing downtime. It's the simplest way to improve productivity on any job site.

Quick Coupler series CW - CAT

Cat® CW Quick Coupler, with lifting hook: enables high digging performance and quick and easy tool change.

Reversible electric fans for radiators

The cooling system is characterized by new arrangement of the elements, with a large radiating capacity, maximum accessibility ensuring easy cleaning. Each cooling radiator is associated with a reversible electric cooling fan that is controlled by the machine based on the temperature of the cooling fluid.

Smart Mode

The excavator automatically modifies the system operating parameters, based on how the operator is used, so as to reduce fuel consumption.

Display touch screen 8"

New 8 "anti-glare touch screen display with high resolution to ensure better visibility. The monitor controls can also be managed via Jog Dial Control, a special wheel manipulator located in the operator's right console. All the main operating and comfort parameters of the machine (air conditioning, bluetooth radio, telephone) can be viewed and managed directly from the monitor, which can manage up to 3 cameras and it is possible to see two images simultaneously.

Tool Control

It allows you to manage up to 20 attachments, with independent adjustments of flow rate and pressure of the hydraulic system: all of which can be selected simply by the operator using the joystick in the cabin.
