325

Name: Caterpillar 325
Brand: Caterpillar
SKU: 325

Crawler Excavators, Excavator medium and large 20-34 t

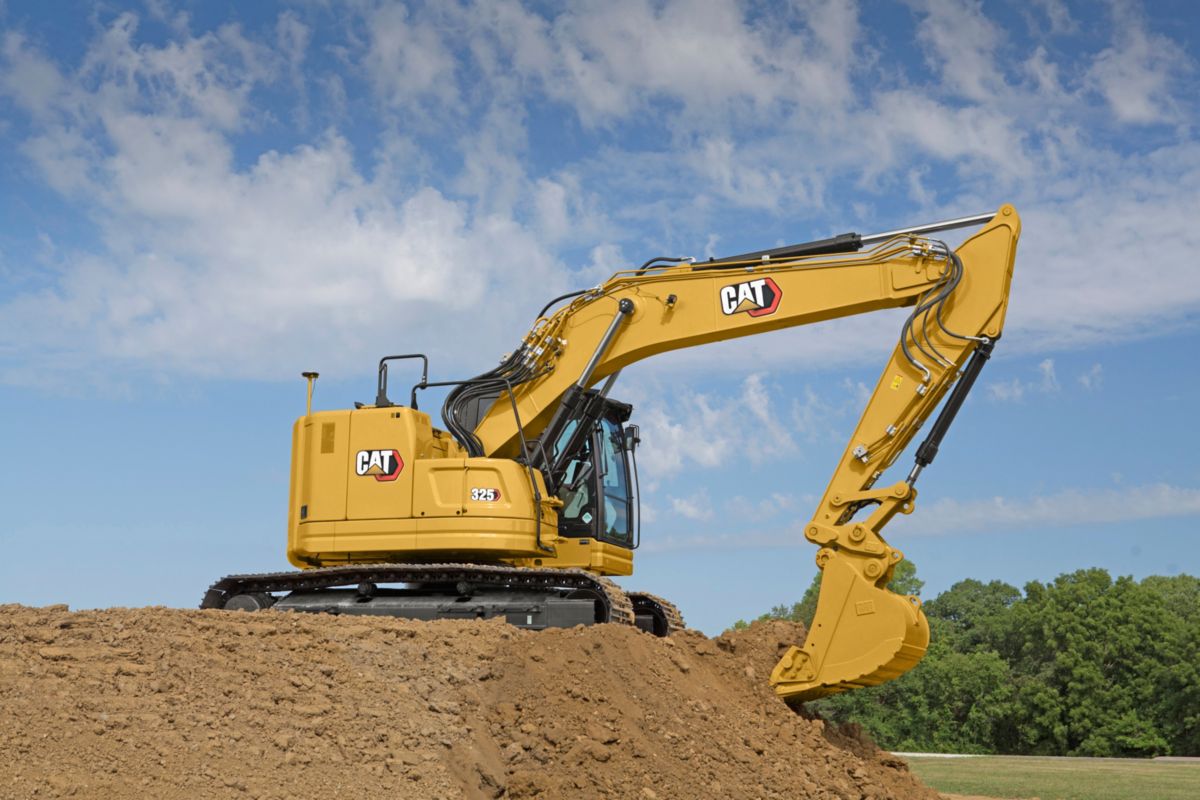

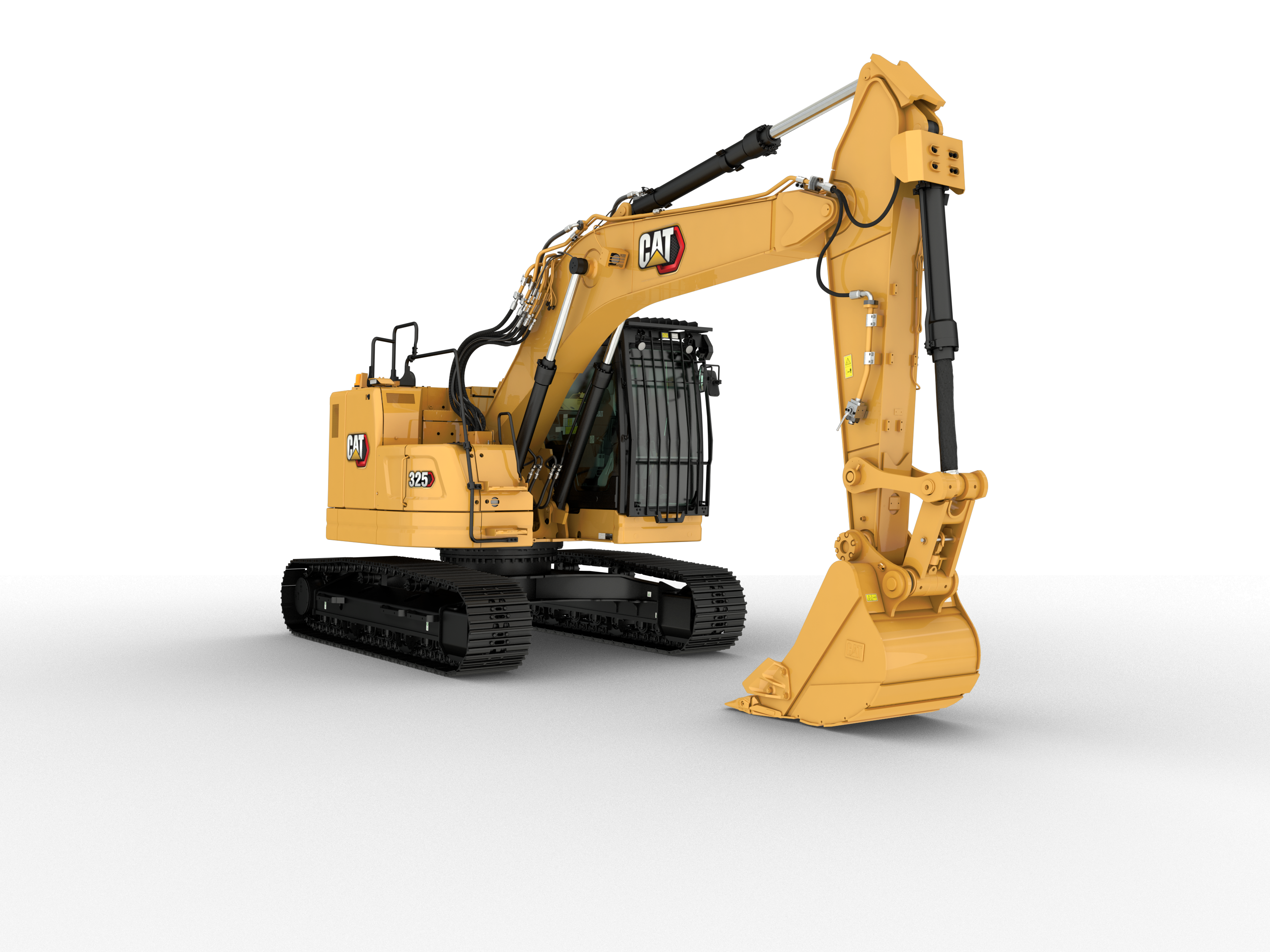

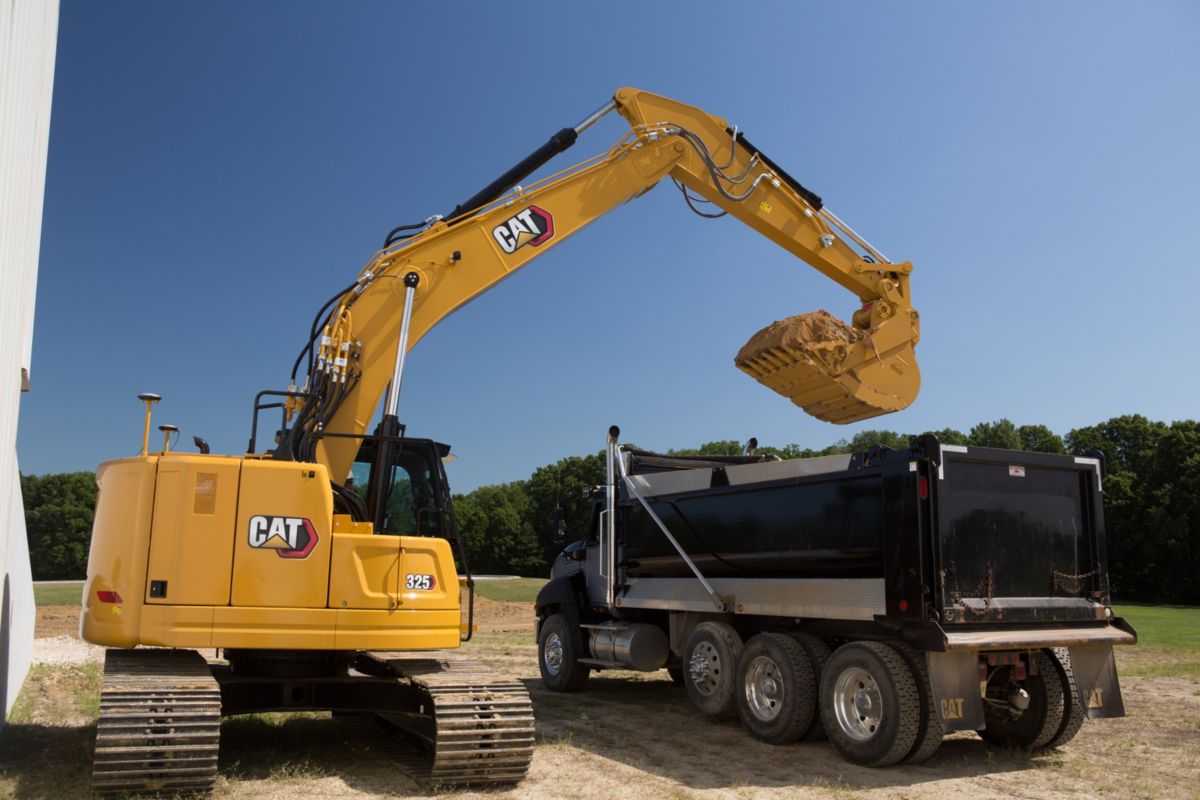

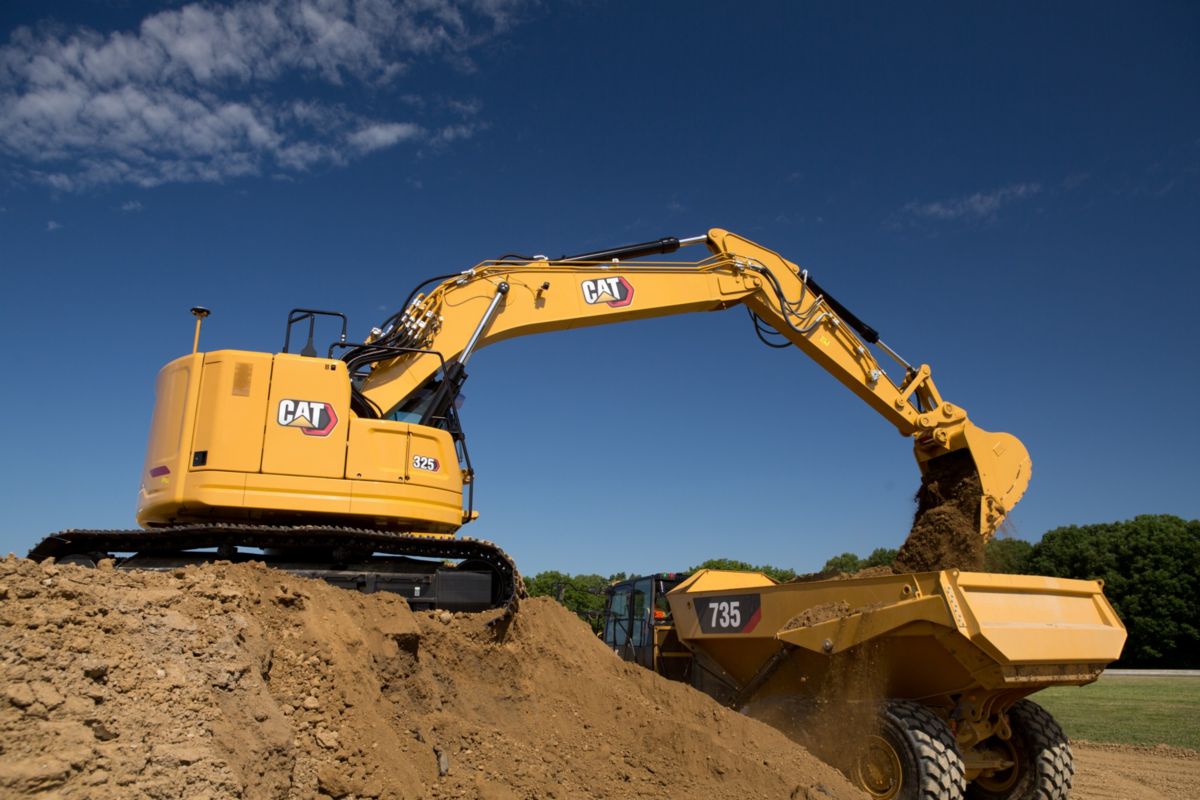

The Cat® 325 Excavator brings premium performance with simple-to-use technologies like Cat GRADE with 2D, Grade Assist, Lift Assist and Payload – all standard equipment from the factory to boost your operator efficiencies up to 45%. Combine these features with a compact radius design for working in tight spaces, a new cab, longer maintenance intervals that lower your maintenance costs up to 20%, and a power system that reduces fuel consumption by up to 25% and you have a low-cost-per-unit-of-production excavator that’s perfect for medium- to heavy-duty applications. Optional blade allows for faster job site cleaning and leveling as well as better lifting capabilities. Optional heavy counterweight allows you to maximize the performance of this compact radius machine.

Contact us Rent - Get a quote Check in used equipment Information here above refers to the latest serie available. Rental fleet machines may belong to previous series of the same model.

Technical information

Variable data depending on the machine configuration

Weight (kg)

27000

Power (kW)

129

Digging depth (mm)

6700

Bucket capacity (m3)

1,3

Radius at ground level (mm)

10130

Transport width (mm)

2980

Engine

Cat C4.4 Stage V

Features

Cat Grade Control

The Cat Grade Control system provides 2D information by locating the bucket position in real time to help the operator easily create accurate flat and sloped surfaces, eliminating the need for continuous field checks.

2D E-Fence

The 2D E-Fence system allows the operator to define the work areas: the machine automatically limits the possible movements based on the spatial constraints of the working environment.

Assist

The assist feature supports the operator in some movements of the machine: Grade Assist (maintains a constant slope defined), Bucket Assist (keeps constant the angle of the bucket), Boom Assist (prevents lifting the machine ensuring the stability) and Swing Assist (automatically stops the rotation of the machine at the point set by the operator).

Cat production measurement

The Cat® Production Measurement weighing system, fully integrated into the touch screen, enables dynamic weighing of loads. The weighing system makes it possible to measure each lift so that operators can work more productively and ensure precise loads in complete safety.

Tool Control

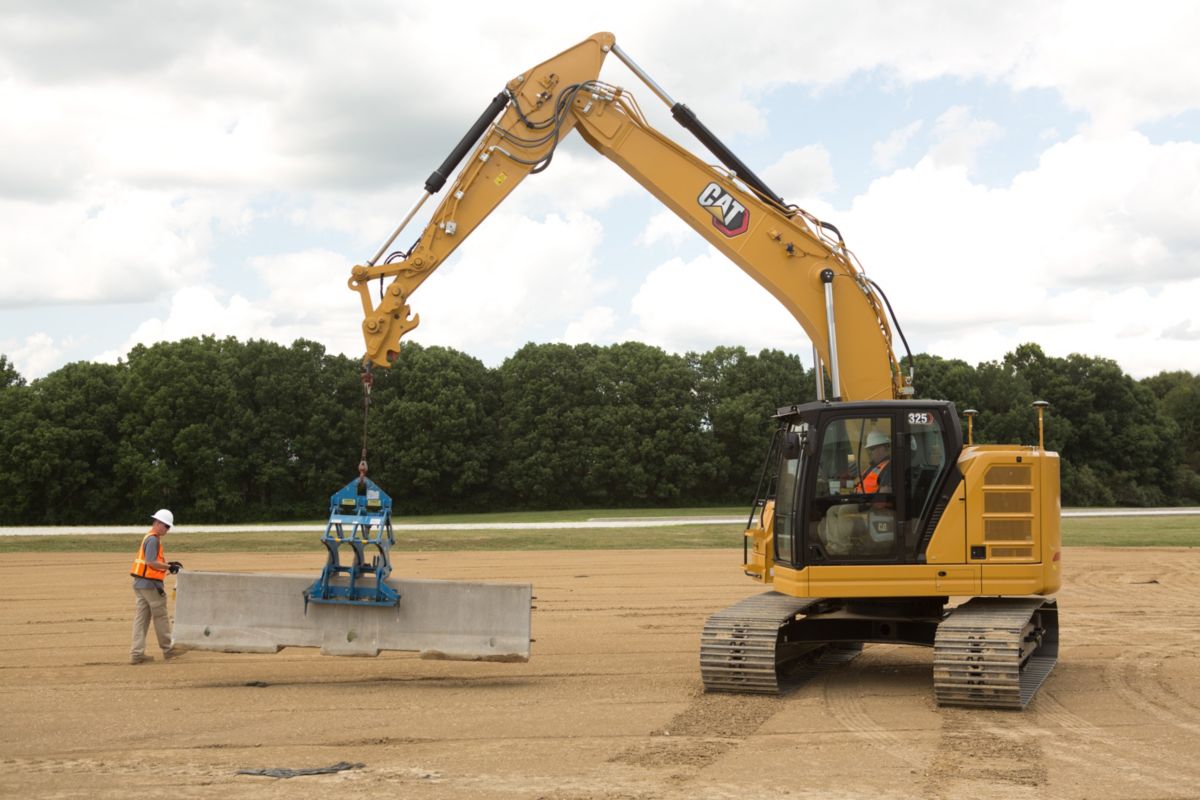

It allows you to manage up to 20 attachments, with independent adjustments of flow rate and pressure of the hydraulic system: all of which can be selected simply by the operator using the joystick in the cabin.

Reversible hydraulic fan in radiators

The cooling system is characterized by new arrangement of the elements, with a large radiating capacity, maximum accessibility ensuring easy cleaning. The radiators fan is hydraulic and reversible and can be directly controlled from the machine display.

Smart Mode

The excavator automatically modifies the system operating parameters, based on how the operator is used, so as to reduce fuel consumption.

Display touch screen 10"

New 10" anti-glare touch screen display with high resolution to ensure better visibility. The monitor controls can also be managed via Jog Dial Control, a special wheel manipulator located in the operator's right console. All the main operating and comfort parameters of the machine (air conditioning, bluetooth radio, telephone) can be viewed and managed directly from the monitor, which can manage up to 3 cameras and it is possible to see two images simultaneously.
