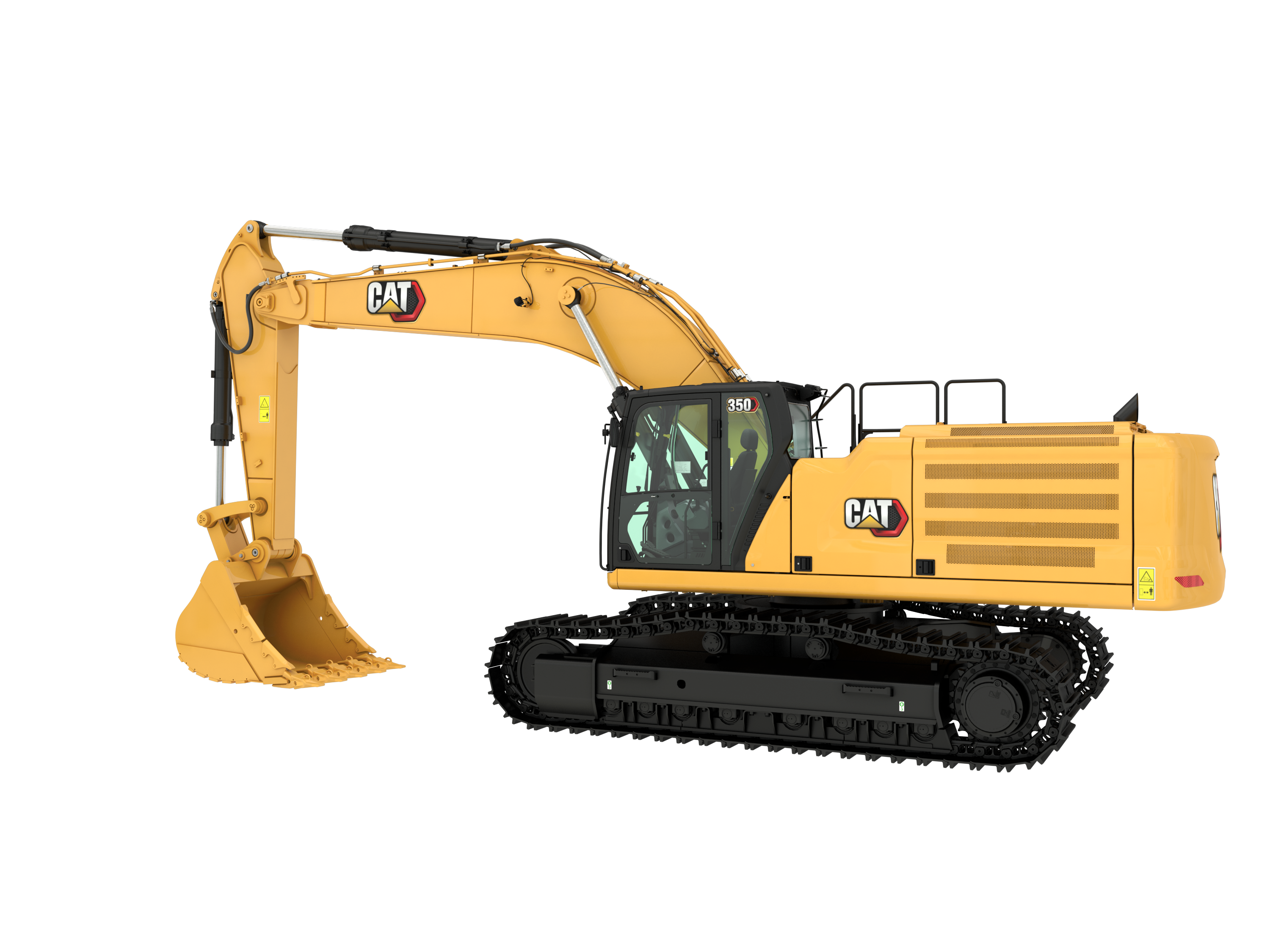

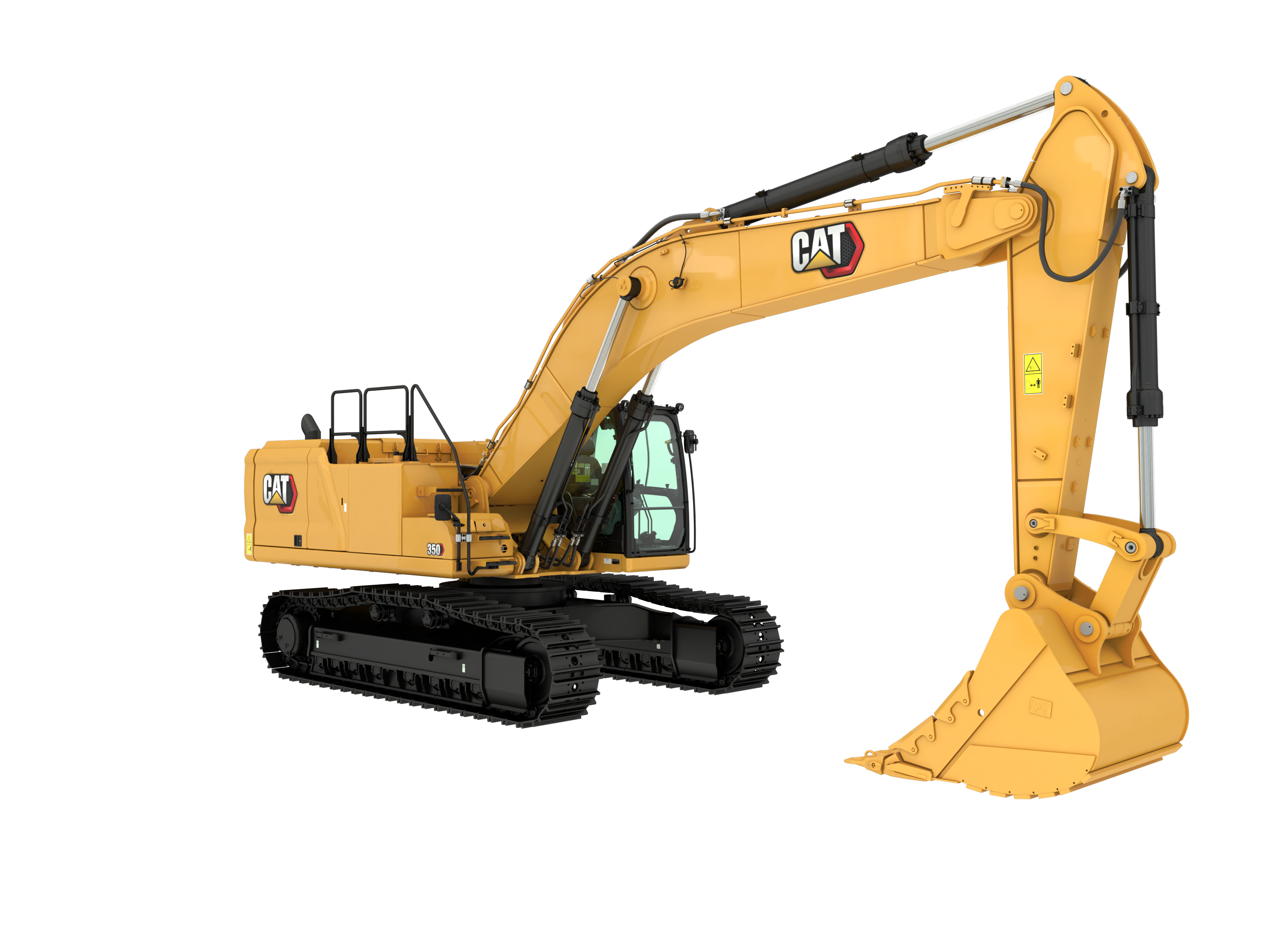

350

Technical information

Variable data depending on the machine configuration
Weight (kg)
47000
Power (kW)
309
Digging depth (mm)
7,5
Bucket capacity (m3)
2,36
Radius at ground level (mm)
11700
Transport width (mm)
3350
Engine
Cat C9.3B Stage V

Features

Cat Grade Control

The Cat Grade Control system provides 2D information by locating the bucket position in real time to help the operator easily create accurate flat and sloped surfaces, eliminating the need for continuous field checks.

2D E-Fence

The 2D E-Fence system allows the operator to define the work areas: the machine automatically limits the possible movements based on the spatial constraints of the working environment.

Assist

The assist feature supports the operator in some movements of the machine: Grade Assist (maintains a constant slope defined), Bucket Assist (keeps constant the angle of the bucket), Boom Assist (prevents lifting the machine ensuring the stability) and Swing Assist (automatically stops the rotation of the machine at the point set by the operator).

Cat production measurement

The Cat® Production Measurement weighing system, fully integrated into the touch screen, enables dynamic weighing of loads. The weighing system makes it possible to measure each lift so that operators can work more productively and ensure precise loads in complete safety.

Reversible hydraulic fan in radiators

The cooling system is characterized by new arrangement of the elements, with a large radiating capacity, maximum accessibility ensuring easy cleaning. The radiators fan is hydraulic and reversible and can be directly controlled from the machine display.

Smart Mode

The excavator automatically modifies the system operating parameters, based on how the operator is used, so as to reduce fuel consumption.
