Terminator
The Terminator is a slow-running, single-shaft shredder for all types of waste. Robust teeth on the shredding drum and the opposing counter comb give coarse pre-crushing to a defined shredding size. The continuous cutting gap adjustment allows precise setting of the particle size for subsequent process steps. The hydraulic drive with load-dependent speed control ensures maximum utilization of the engine output. The hook lift platform, 3-axle chassis and steel tracks with hydraulic drive options provide excellent mobility.
Technical information
Features

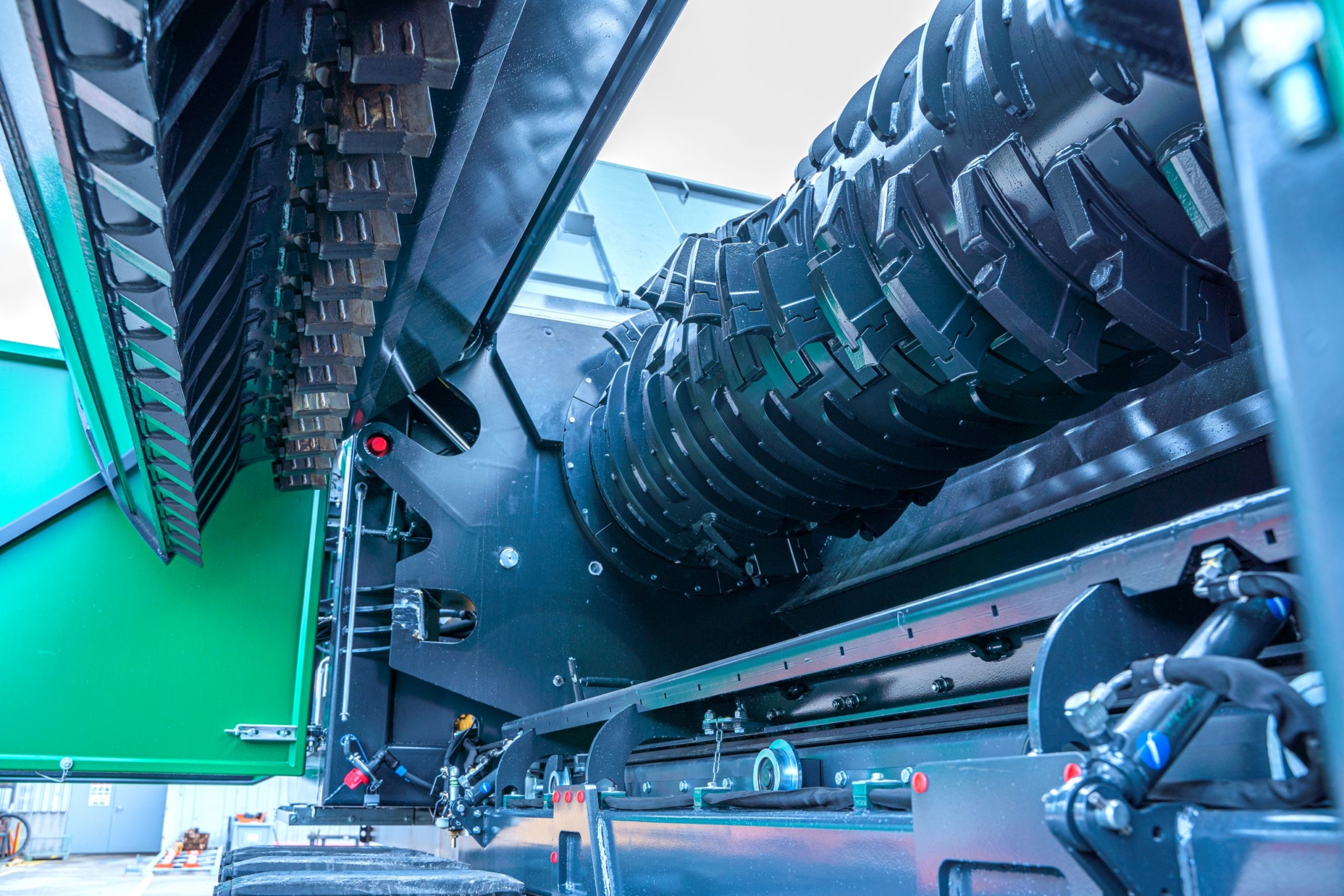

Terminator shredding rotor
The Terminator has three types of rotors available, to adapt to each job: ˝U˝ (Universal) ˝F˝ (Fine) ˝XXF˝ (Extra Fine). The different rotors guarantee different sizes according to the material to be obtained. The teeth can be reused several times, with a reduction in wear costs.
Chassis

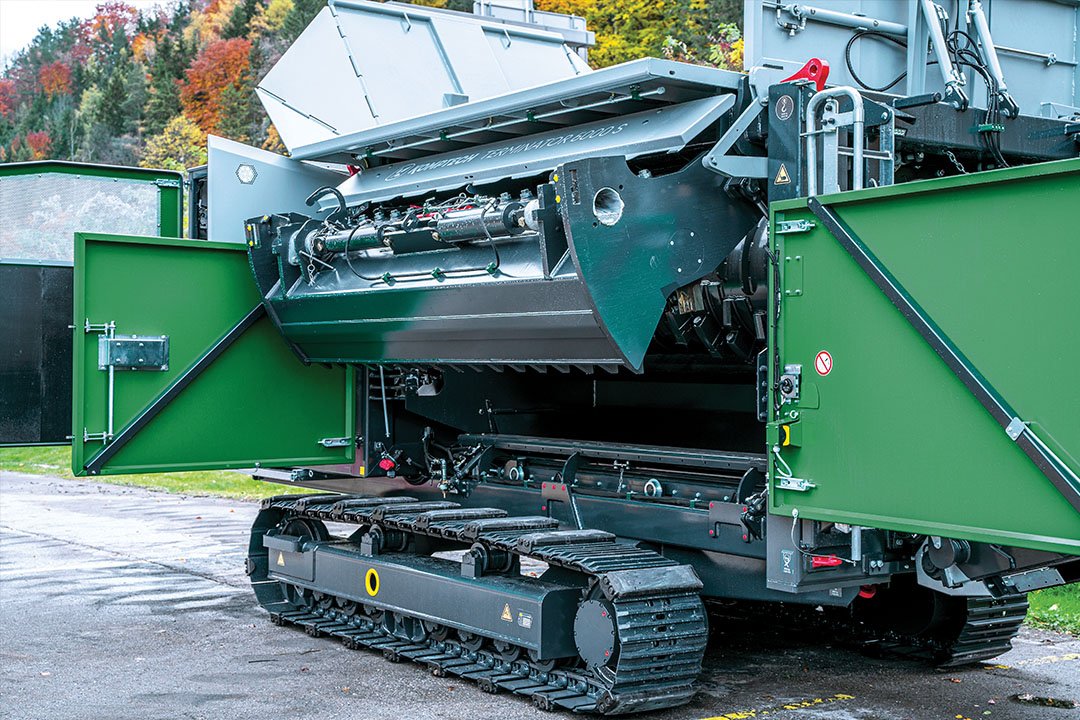

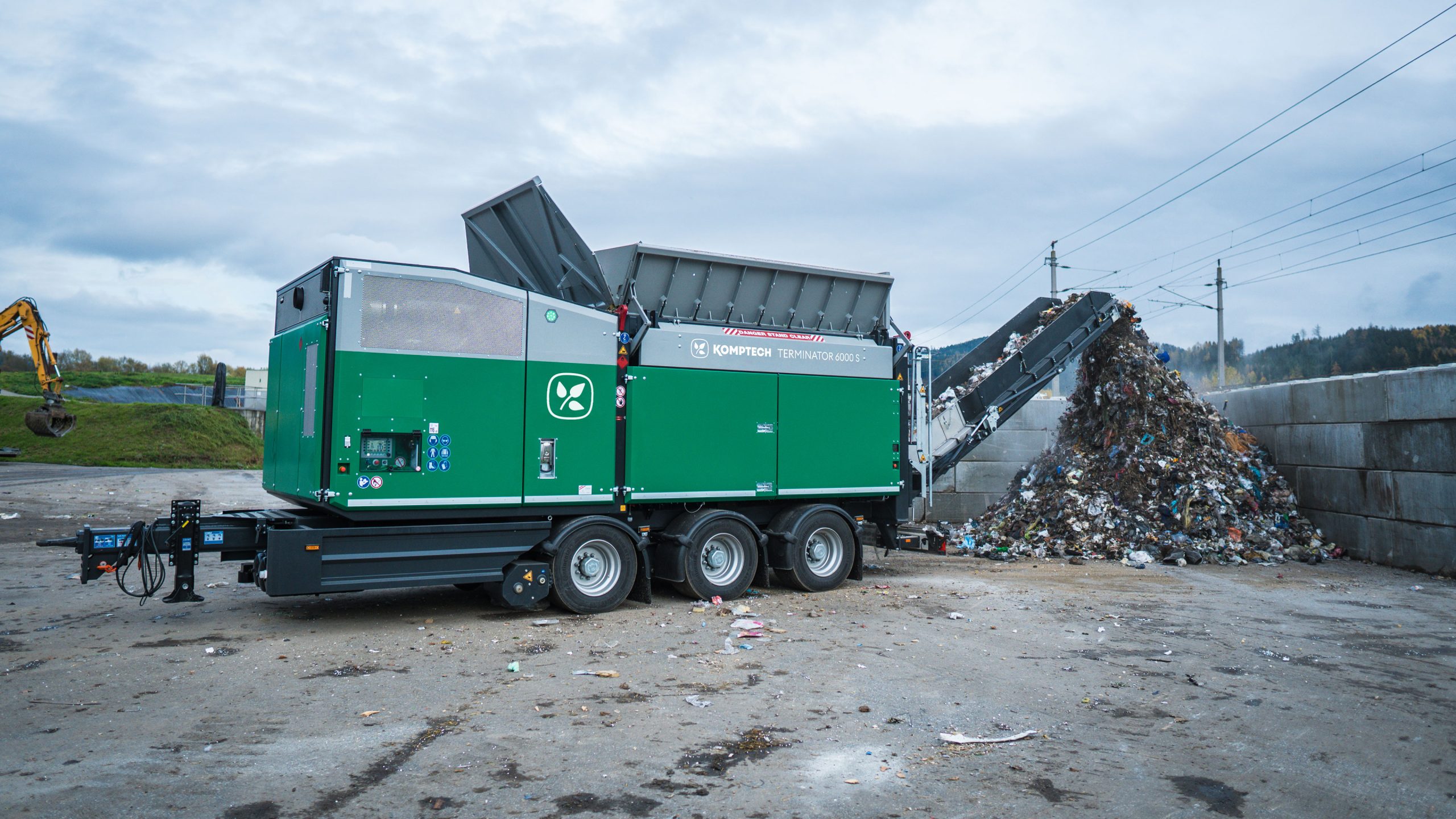

Three types of frame available: on wheels, demountable and on tracks, in all possible variants, the machine immediately switches from transport to work position. The right frame for every surface and application.
Caterpillar Engines
The whole range is equipped with powerful Caterpillar engines from the C9 model of the 3400 version up to the powerful C18, for the larger versions. A powerful cooling system for both the engine and the hydraulic system allows the machines to work even in the most difficult situations.
Terminator counter comb

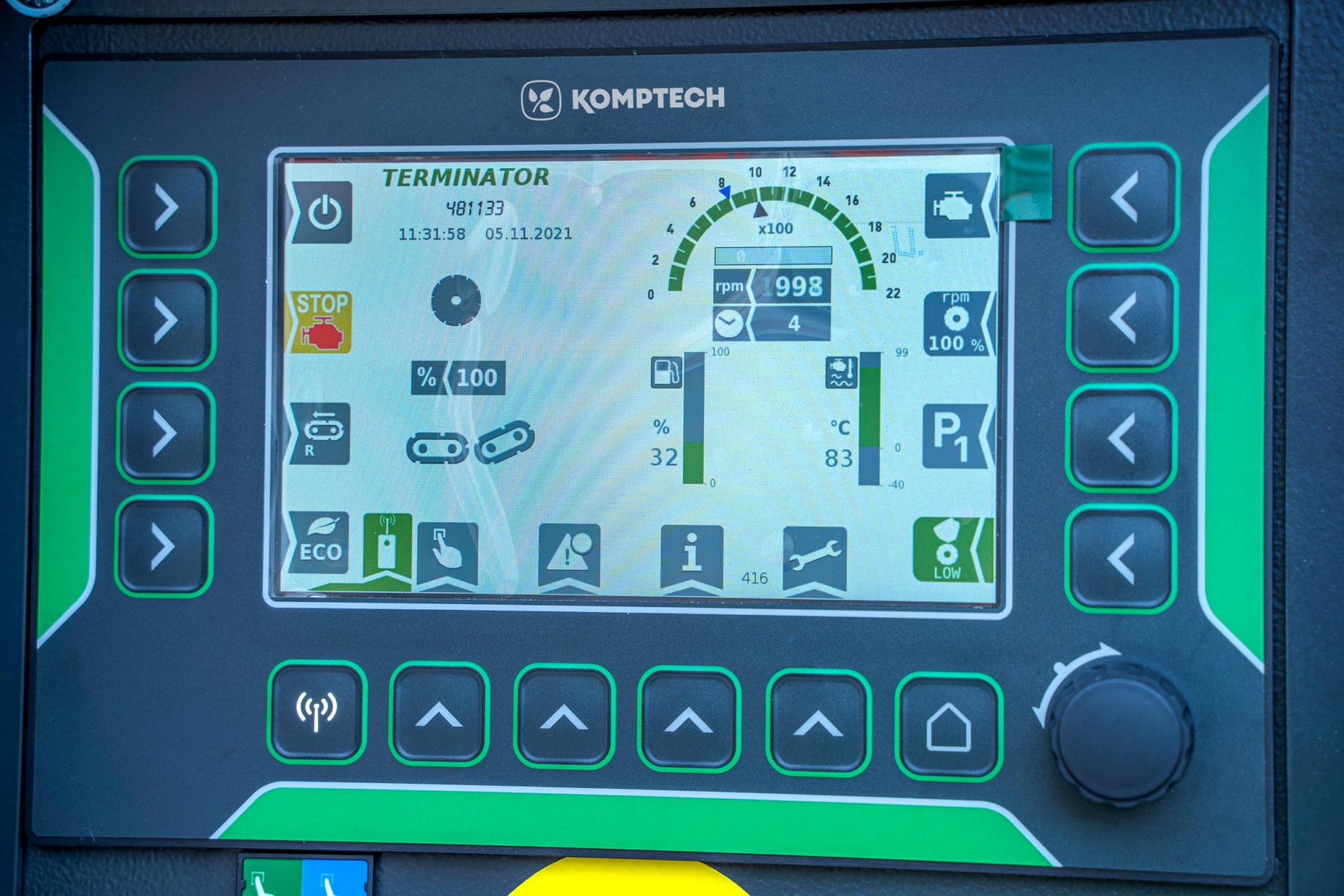

The counter comb is hydraulically controlled and allows you to continuously vary the size of the output material, increasing or decreasing the space between the counter comb and the rotor, this space can be set from the control panel or remote control even during the work phase.
